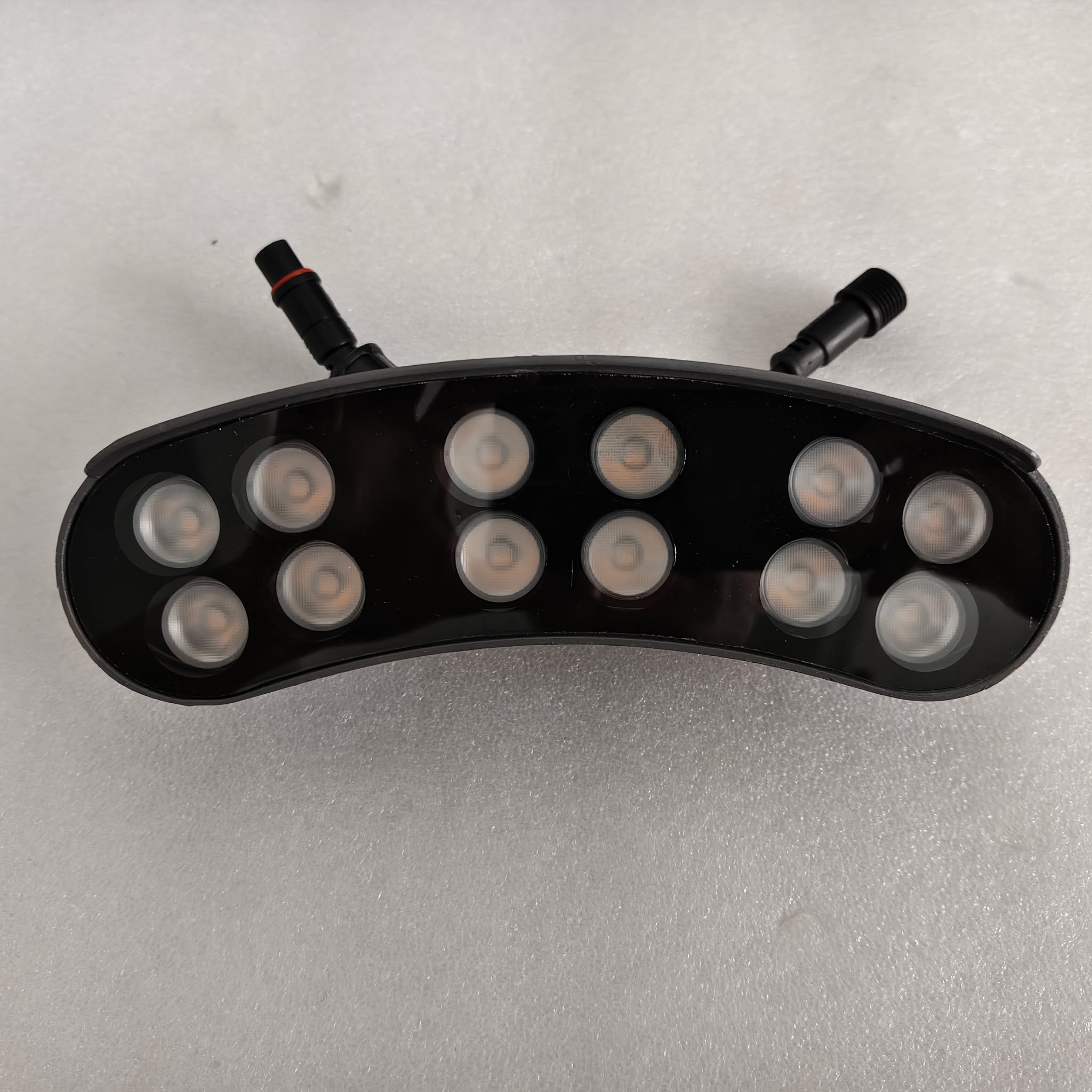

YPS Halo – 360° Tree, Pole & Wall Lighting System

Add light exactly where traditional fixtures cannot.

The YPS Halo is a unique wrap-around addressable lighting system designed to add clean, powerful, controlled light to trees, poles, posts, columns, walls, displays, and custom installations. Whether you are lighting a tree trunk, wrapping a pole, creating architectural effects, or building something completely custom, the YPS Halo makes it easy to add a glowing ring of controllable light.

Each Halo section is individually addressable and built with WS2814 control, allowing you to create fades, chases, pulses, color effects, warm white accents, and fully sequenced lighting effects using compatible pixel controllers.

Key Features

• 12V addressable lighting system
• WS2814 control chip
• RGBW LEDs with 3000K warm white
• ARGB color order
• Individually addressable control
• Aluminum alloy housing
• IP65 outdoor-rated protection
• UV resistant
• 18AWG black round wire
• Xconnect
• Designed for trees, poles, walls, posts, columns, and custom displays
• Great for permanent installs, holiday shows, commercial displays, and themed environments

Built for Creative Installations

The YPS Halo is designed to wrap light around objects and surfaces where traditional string lights, floods, or strips may not create the right effect.

Use it on:

• Tree trunks
• Light poles
• Sign posts
• Columns
• Walls
• Walkthrough displays
• Holiday attractions
• Commercial installs
• Parks and public spaces
• Haunted attractions
• Custom props and scenic builds

Addressable Control

Unlike standard static lighting, the YPS Halo is individually addressable, giving you full creative control over your effects.

Create:

• Smooth color fades
• Warm white accent lighting
• Chase effects
• Pulsing halos
• Color sweeps
• Sequenced show effects
• Ambient glow
• Tree and pole highlight effects

The 3000K warm white option allows for a clean natural glow, while the RGBA color control gives you flexibility for holiday, Halloween, commercial, and year-round displays.

Technical Specifications

• Voltage: DC 12V
• Wattage: 13.5W each = Total for 8 = About 108W
• Maximum Current: 1.14A at warm white each = Total for 8 = 9.12A
• Control Chip: WS2814
• LED Type: LED5054 x 12
• Color: RGBW
• Color Temperature: 3000K
• Color Order: WRGB
• LED Brand: Epistar
• Beam Angle: 20° ± 10°
• Estimated Light Source Life: Approximately 30,000 hours
• Wire: 18AWG black round wire, approximately 4 inches
• Wiring Definition: Red = V+, Yellow = Data, Black = GND
• Material: Aluminum alloy
• IP Rating: IP65
• UV Resistant: Yes
• Operating Temperature: -20°C to +55°C
• Storage Temperature: -40°C to +75°C
• Size: 21.5cm x 6cm x 5.4cm
• Net Weight: Approximately 0.75kg without stake or floor stand
• Suggested Quantity Before Power Injection: Approximately 8 pieces at 100% brightness
• Irradiation Height: Approximately 10ft when all LEDs are the same color

Perfect For

• Christmas displays
• Commercial lighting
• Tree lighting
• Pole lighting
• Walkthrough attractions
• Parks and public spaces
• Architectural accent lighting
• Haunted attractions
• Themed environments
• Event lighting
• Immersive displays

Important Notes

Power injection requirements may vary depending on brightness, controller settings, cable length, voltage drop, and installation layout. We recommend testing your setup before final installation.

Final connector style, mounting option, and accessories may vary depending on selected configuration.
