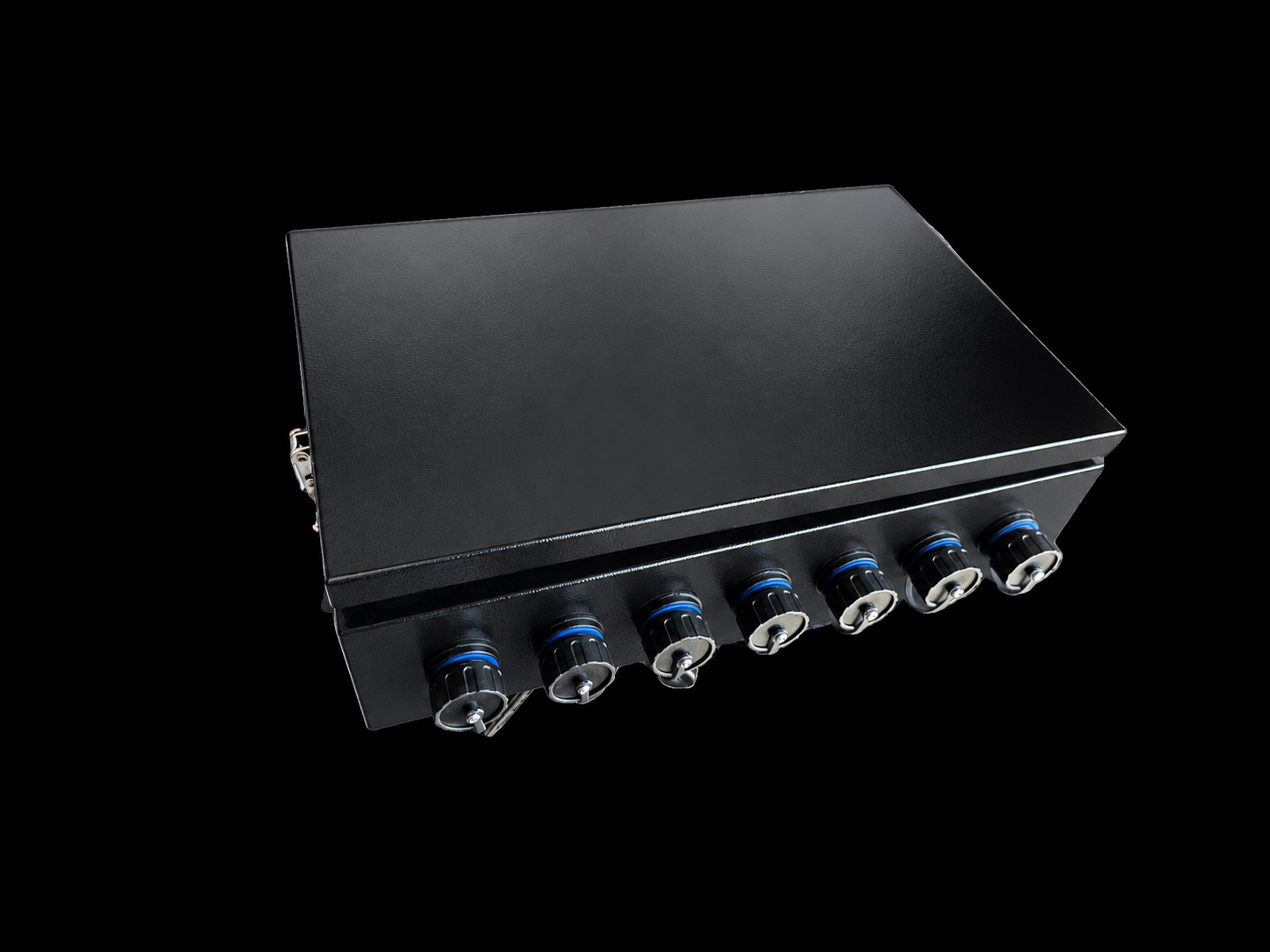

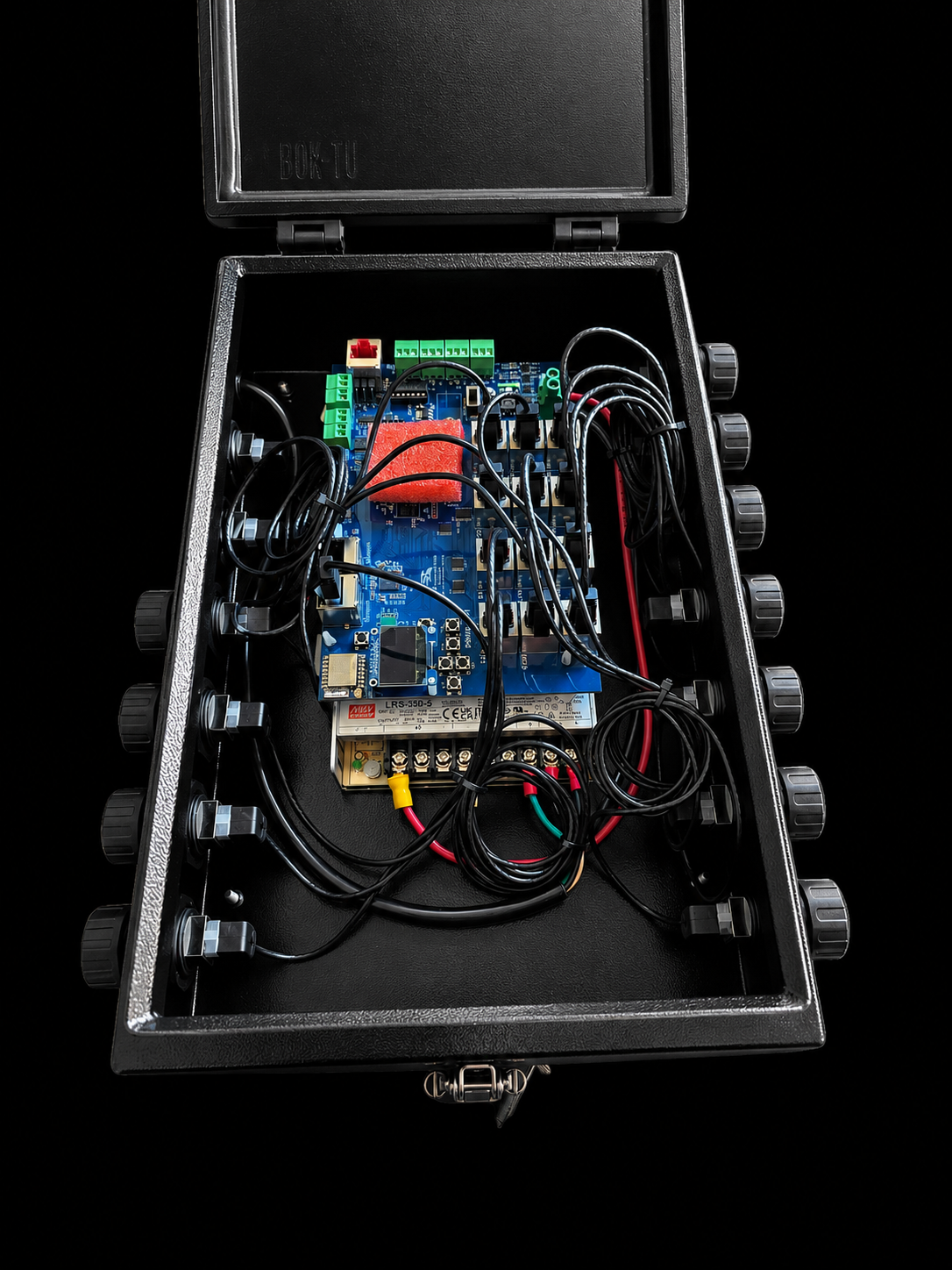

This full build comes with Build Falcon Controller F48 Controller and (1) Meanwell 350-watt 5V power supplies in a YPS Metal Enclosure with FREE SHIPPING. These are ready to run, no need for additional work besides setting up in xLights.
Documentation
Description
F48V4-NS Differential Controller (Long Range).
Only One Ethernet Port.Â
Can drive up to 32768 pixels. 48 Differential Outputs. Local SmartReceiver onboard. Can connect up to 12 Build Falcon Controller FREE SHIPPING Differential (Long Range) SmartReceiver Chains.
Board current specs
New FeaturesÂ
- 192Â Universes of E131, Artnet or DDP.
- One Ethernet Port.
- Wireless ESP-07 Module with board mount antenna. Optional external antenna can be ordered.
- Falcon Player Remote Mode. The controller can store sequences on micro SD card and play in sync with FPP master.
- Single 4-Layer Board.
- Ability to drive 12 SmartReceiver chains.
Power
Board can be powered from 5 or 7 – 13V, 3 amp minimum power supply.
Local SmartReceiver
Built-In local SmartReceiver. Ports 45-48A are the local SmartReceiver Ports.
Number of ports
48 Ports.
All ports can use any of the 98,304 channels this controller can receive as a start address.
Each string can be independently configured for null nodes, zigzag, forward/reverse, node type, pixel count , grouping etc…
Pixels per port
1024 maximum per port when in 32 port mode. 704Â maximum per port when in 48 port mode.
Pixel Types
DMX and Renard Outputs
1 – Dedicated RS-485 output. 1 RJ-45 connector.
LCD Display,Push Buttons and Indicators
.96″ OLED 128×64 matrix display for setup and status.
5 – Push buttons to control display. Up, Down, Right, Left and Select
Power LED indicator
Two multi purpose LEDS for status.
Temperature Sensors
1 – Processor temperature sensor.
1Â – Additional Sensor
