Full Build Falcon Controller with Dual Expansion – 48 Output Pixel (FREE SHIPPING)

This full build comes with Build Falcon Controller 16 port, 2 – 16 port expansion, and (6) Meanwell 350-watt 12V power supplies FREE SHIPPING in a YPS Metal Enclosure. These are ready to run, no need for additional work besides setting up in xLights.

• Documentation
  • Video Of Product Line

  • Specification Sheet
  • Use of Expansion Boards Explained

  Description

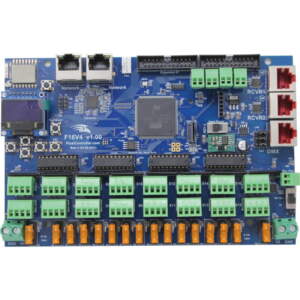

  Build Falcon Controller FREE SHIPPING F16V4 Pixel Controller

  The controller receives 192 universes of E131, Artnet or DDP data and can output pixel data to 16-48 strings with optional expansion boards.

  Board current specs

  New Features

  • 192 Universes of E131/Artnet.
  • 2-Port Switch to “Daisy-Chain” controllers.
  • Wireless ESP-07 Module with board mount antenna. Optional external antenna can be ordered.
  • Falcon Player Remote Mode. The controller can store sequences on micro SD card and play in sync with FPP master.
  • Single 4-Layer Board that is 3/8” smaller in height.
  • Ability to drive two expansion boards. (Up to 48 strings both local and remote).

  Power

• Board can be powered from pixel power or external power. Both inputs can be 5-13VDC.
  Power output port to power switches.
  Two independent sides of power. Each one can be a different voltage.
  (Expansion board also has two independent pixel power inputs giving 4 independent ports of input power when using 32 string mode and expansion board)
  16 – Fused outputs for main board and expansion board.Number of outputs
  16, 32 or 48 with expansion boards.
  All outputs can use any of the 98304 channels this controller can receive as a start address.
  Each string can be independently configured for null nodes, zigzag, forward/reverse, node type, pixel count , grouping etc…

  Pixel per output
  1024 pixels per output in 16 to 32 string mode. 704 pixels per string in 48 port mode.

  String Types

  More than 70+ pixel types supported.

  Supported Pixel Types

  Receiver Outputs


  Two dedicated SmartReceiver ports. Each can drive one receiver chain. Up to six receivers can be in a chain.

  DMX/Renard Outputs


  1 – Dedicated RS-485 outputs. RJ-45 connector

  LCD Display,Push Buttons and Indicators
  .96″ OLED 128×64 matrix display for setup and status.
  5 – Push buttons to control display. Up, Down, Right, Left and Select
  Power LED indicator
  Two multi purpose LEDS for status.
  16 – Fuse LED Indicators

  Temperature Sensors
  1 – Processor temperature sensor.
  2 – Additional Sensors

  Voltage sensors
  The incoming pixel voltages of main board are detected and displayed in user interface. (The webpage interface and OLED displays the voltages and temperatures.)

  Notes:
  1) Expansion board must be within 1.5 feet of main board. Maybe further but no guarantee.
