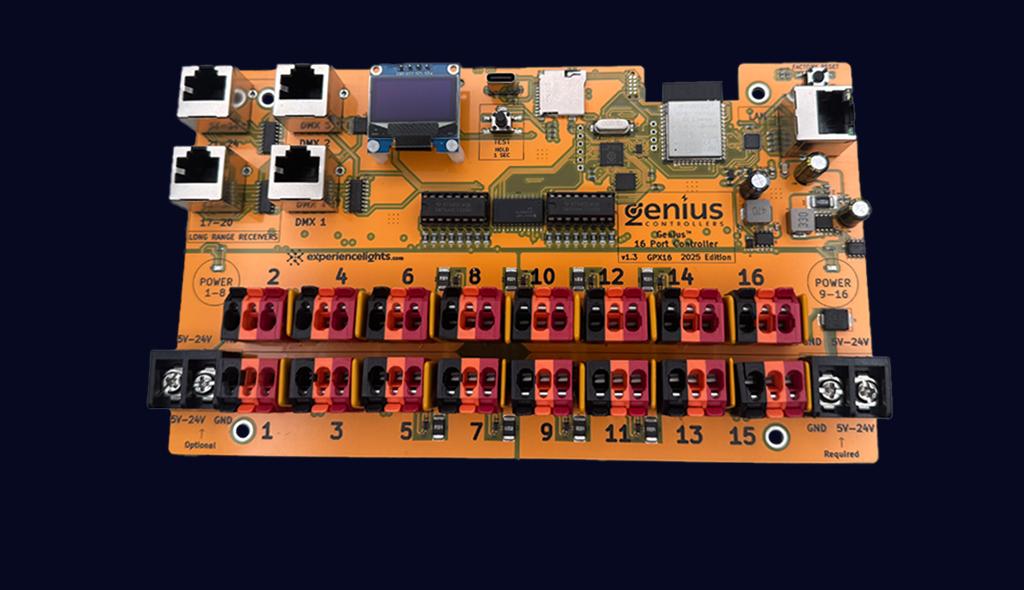

Genius Controller – 16 Output Pixel Controller

PRODUCT DESCRIPTION

• Supports 5 thru 24v
• 1 Ethernet Port
• 16 x 3-pin spring loaded terminals (no phoenix connectors or screw down terminals)
• 16 x automatically resettable fuses (no replacing blown fuses)
• Supported protocols: DDP, E1.31, ArtNet
• Outputs the most common 3-wire WS281X pixel protocol.
• 2 independent power input banks, with reverse polarity protection. (12V only)
• 2 x RJ45 ports for long range receivers
• 2 x RJ45 ports for DMX output
• Configuration can be done via your smartphone, tablet or PC over a wifi or wired connection
• Per port current monitoring (RTCM: Real time current Monitoring)
• Per port pixel counting
• Automatic fault detection can find burnt out pixels, before you can*
• Repair mode highlights where you need to splice to remove failed pixels*
• SD card slot for log storage, and standalone operation*
• Simple & fast over-the-air updates; with ability to easily roll back to previous firmware versions
• Rich JSON API
• Built-in test mode animations
• Future remote monitoring via a mobile app; free to single-site residential customers
• Seamlessly control up to ~10,000 pixels using e1.31/artnet, or ~20,000 pixels using DDP.
• No banks or groups.  Pixels can be distributed however you’d like on any outputs, with any number of pixels assigned to each port.
