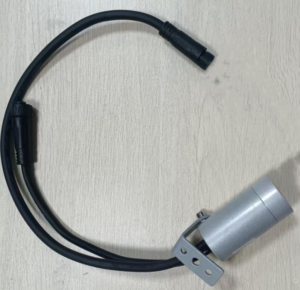

YPS 24V Outdoor DMX Spotlight

Name: YPS 24V Outdoor DMX Spotlight
SKU: 45029
Availability: InStock

Precision DMX Lighting. Built for Displays.

The YPS 24V Outdoor DMX Spotlight is a compact, high-performance DMX512 addressable spotlight designed for professional lighting installations, architectural accents, props, and immersive displays.

Built with a rugged aluminum alloy housing and high-efficiency SMD3535 LED, this spotlight delivers focused illumination with excellent durability for both indoor and outdoor environments.

Each unit is individually addressable via DMX512, allowing precise control for complex lighting effects, animations, and synchronized shows.

Key Features

• DMX512 Individual Addressing
Each spotlight can be individually controlled for advanced lighting effects.

• High Efficiency LED Source
Premium SMD3535 LED provides strong output with excellent efficiency.

• RGBA Color Mixing
Full color capability with RGBA configuration for vibrant lighting effects.

• 20° Precision Beam Angle
Focused spotlight beam ideal for highlighting props, architecture, or scenery.

• Rugged Metal Construction
Durable aluminum alloy and copper housing designed for long-term installations.

• Outdoor Rated
IP66 waterproof rating for outdoor use in demanding environments.

• Professional 5-Pin Connection
Secure connector system for reliable DMX signal and power distribution.

Technical Specifications

Specification	Details
Product	YPS DMX Spot Pixel
Voltage	DC 24V
Power	3W
LED Type	SMD3535
Color	RGBA
Color Temperature	3000K
Luminous Efficiency	92 lm/W
Beam Angle	20° ±10%
Control Protocol	DMX512
Addressing	Individually Addressable
Connector	5-Pin Connector
Wire	18 AWG Black Round Wire
Operating Temperature	-4°F to 140°F (-20°C to 60°C)
Storage Temperature	-40°F to 167°F (-40°C to 75°C)
Material	Aluminum Alloy / Copper
UV Resistance	Yes
IP Rating	IP66
Diameter	33 mm (1.3 in)
Height	63 mm (2.48 in)
Weight	0.2 kg per string
LED Lifespan	~30,000 hours
