YPS VIVID 8 – Professional Pixel Controller (Ready to Run – Free Shipping)

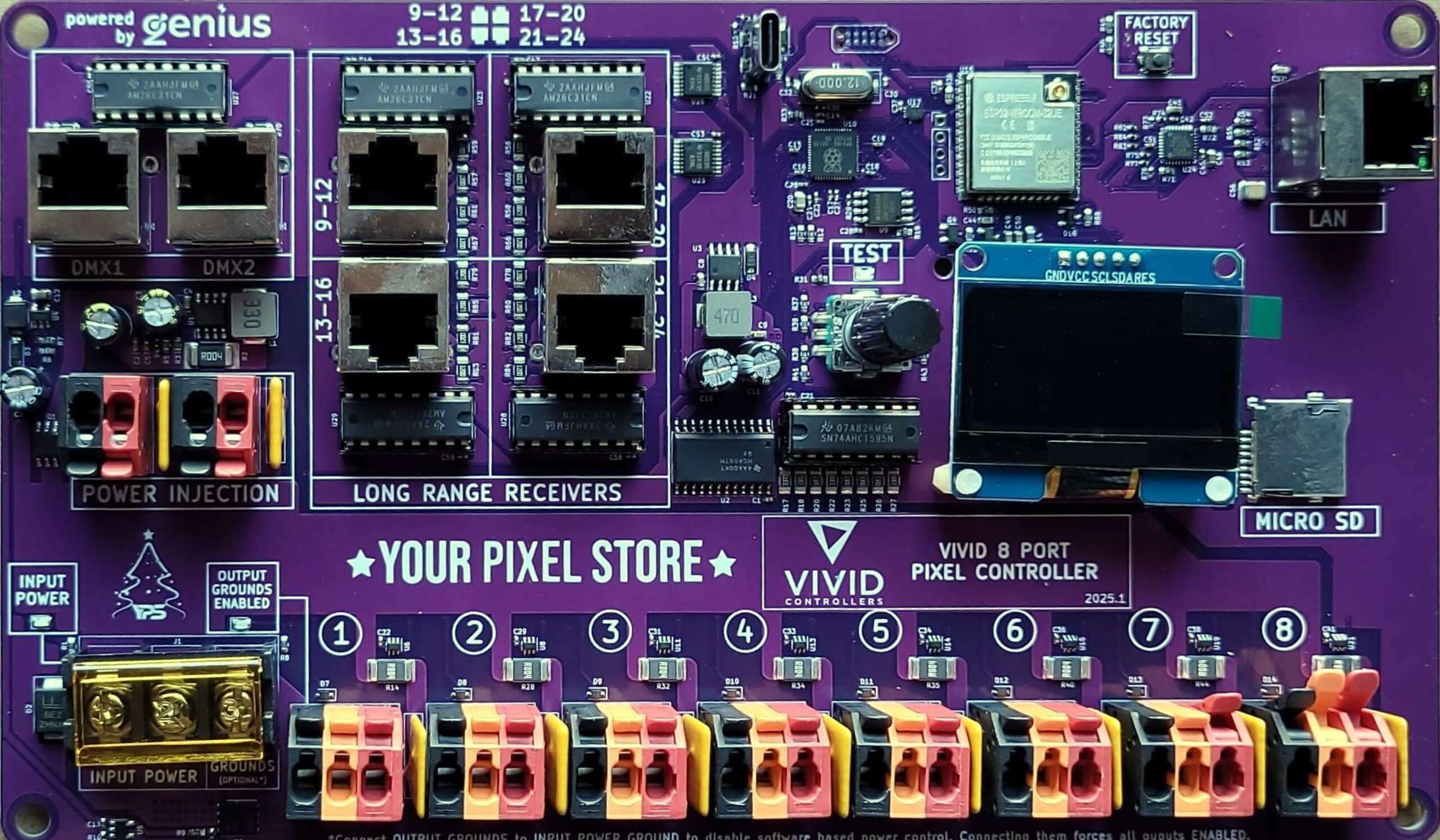

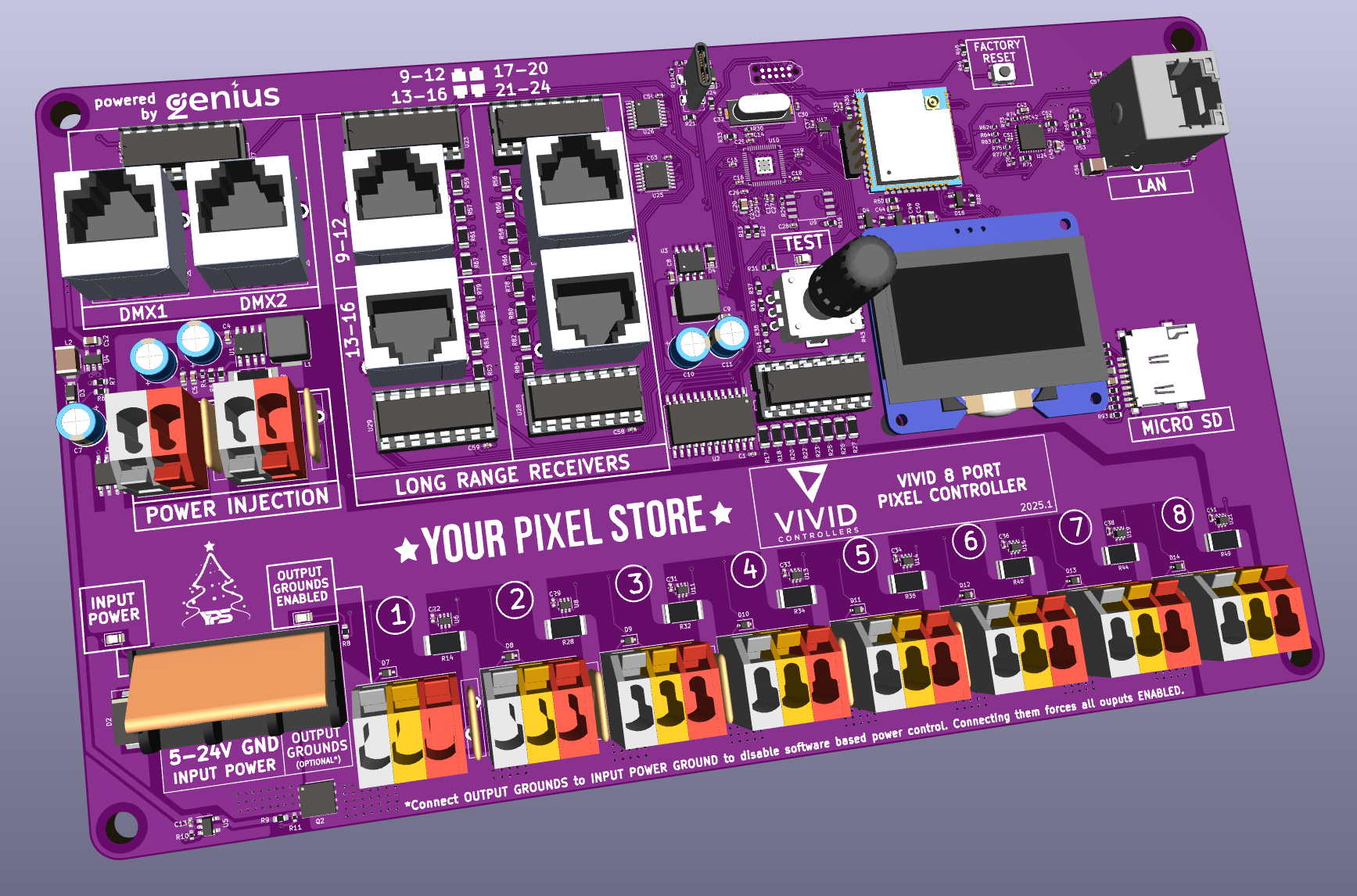

VIVID 8 – Professional Pixel Controller | 8-Port Advanced LED Pixel Controller

Take full control of your lighting display with the VIVID 8, a cutting-edge professional pixel controller engineered for high performance, flexibility, and ease of use. Whether you’re running a dynamic Christmas light show, a permanent RGB installation, or a large-scale event, the VIVID 8 delivers powerful pixel management for seamless lighting experiences.

Key Features:

• Wide Voltage Support: Operates from 5V to 24V with built-in reverse polarity protection.

• Quick Connect Outputs:
  • 8 x 3-pin Quick Connect Clever Lock outputs – No screwdrivers needed!
  • 2 x 2-pin Clever Lock connectors for easy power injection.

• DMX & Long-Range Expansion:
  • 2 x RJ45 DMX output jacks
  • 4 x RJ45 ports for long-range receivers

• Smart Power Control:
  • 8 auto-reset fuses – no blown fuses to replace
  • Bank-level power shutdown (schedule or manual)
  • Optional hardwire bypass

• User-Friendly Interface:
  • Extra-large OLED display with intuitive radial knob for easy navigation
  • Remote configuration via WiFi or Ethernet

• Advanced Performance:
  • Supports E1.31, ArtNet, and DDP protocols
  • Up to 20,000 pixels (DDP) or 10,000 (E1.31/ArtNet)
  • Built-in test animations & OTA firmware updates

• Stand-Alone Mode:
  • Operates as a wired FPP remote or standalone via Micro SD

• Smart Monitoring:
  • Per-port current and pixel monitoring
  • 6 replaceable output drivers – quick & easy port repairs

• External Antenna Included: Stronger signal; drill hole included for mounting

Why Choose the VIVID 8 Pixel Controller?

The VIVID 8 isn’t just another controller — it’s a professional-grade pixel solution built for precision, safety, and scalability. With no banks or output limitations, assign any number of pixels to any output. The quick-connect design simplifies installation, while the robust firmware ensures you’re ready for the most complex lighting shows, whether indoor or outdoor.

Ideal For:

• Christmas and holiday light shows

• Permanent RGB lighting installs

• Stage and theatrical lighting

• Theme parks, haunted attractions, and immersive events

• LED pixel mapping projects
