WS2811 vs WS2812: The Clear Guide for Reliable Light Shows

Choosing between WS2811 and WS2812 pixels can feel like a maze when planning your next Halloween or Christmas display. Each pixel type has quirks that affect wiring, voltage needs, and repair options—details that can make or break your setup. In this guide, you’ll get clear facts on reliability, compatibility with YPS controllers, and how to handle power injection and data lines so your show shines without glitches. For more insights, check out this WS2811 vs WS2812B comparison.

Discover the best options for your display with our Pixel Controller Software Guide to help you choose, configure, and run your show effectively. For those looking to sync video and pixels seamlessly, our Top Free Projection Mapping Software is a great resource to start with.

Understanding WS2811 and WS2812 LED Pixels

Choosing the right LED pixels is the first step in creating a light show that dazzles. Let’s break down the key points that differentiate WS2811 and WS2812 pixels, so you can make an informed decision for your next project.

Key Differences in Voltage and Wiring

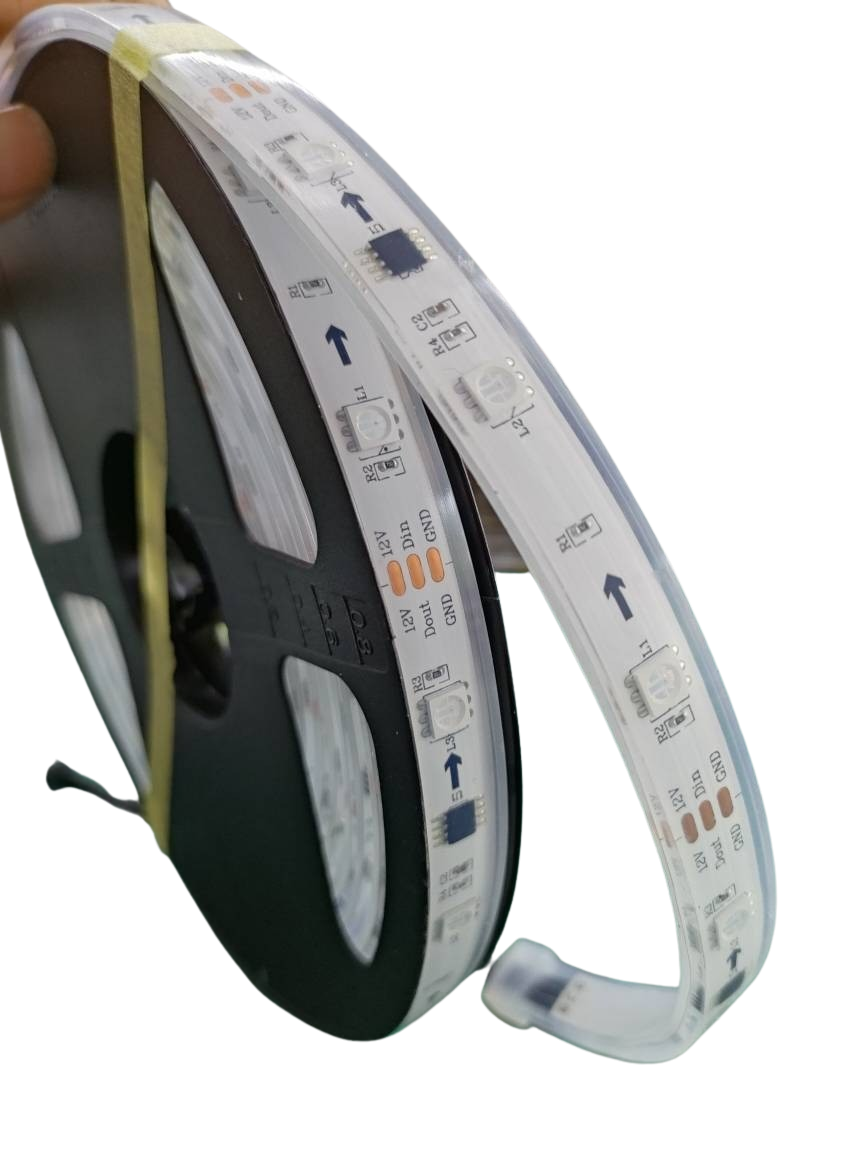

When it comes to voltage and wiring, WS2811 and WS2812 pixels each have their unique characteristics. The WS2811 pixels operate at a 12V level, making them less prone to voltage drop over long distances. This means fewer power injection points are needed, saving you time and effort. In contrast, WS2812 pixels run on 5V, providing more vibrant colors but requiring careful attention to power distribution.

Wiring is another area where these pixels diverge. WS2811 operates with a separate control chip, which can lead to more complex wiring. On the other hand, WS2812 integrates the control chip within each pixel, simplifying the wiring process. This makes WS2812 an attractive option for those seeking straightforward setups. But remember, less wiring complexity might mean higher initial costs due to more frequent power injections needed.

Timing Tolerance and Repairability

Timing tolerance is crucial for ensuring that your light show runs smoothly. WS2811 pixels provide a greater tolerance for timing variations, which can be beneficial in large installations where minor timing mismatches might occur. This flexibility can be particularly useful in maintaining a consistent display across extended lengths.

Repairability is another factor to consider. WS2811 pixels, with their separate control chips, are generally easier to troubleshoot and repair if issues arise. WS2812 pixels, while being simpler to set up, can be more challenging to repair due to their integrated design. If a pixel fails, you may need to replace an entire section rather than a single component.

Comparing Costs and Compatibility

Understanding the costs and compatibility of these pixels can help you budget effectively and choose the right components for your setup. WS2811 pixels tend to be more affordable upfront, which can be appealing for large-scale projects with budget constraints. However, the need for additional power distribution and wiring can add to the overall expense.

Compatibility with controllers is another key consideration. Both WS2811 and WS2812 pixels work well with modern controllers, including the popular YPS controllers. This ensures that you can integrate them easily into your existing setup without facing major compatibility issues. Keep in mind that some advanced features may only be accessible with specific controllers.

Choosing the Right Pixel Controller

A reliable pixel controller can make or break your light show. Understanding the features of the YPS VIVID 8 and how it supports different systems is essential for optimal performance.

Features of YPS VIVID 8

The YPS VIVID 8 controller is designed to offer robust performance for any light show. It supports a wide range of pixel types, ensuring compatibility with both WS2811 and WS2812 pixels. The intuitive interface allows you to customize your show with ease, making it accessible for both beginners and seasoned professionals.

One standout feature is the ability to handle complex sequences seamlessly. Whether you plan a simple display or a more elaborate setup, the VIVID 8 can handle the task with precision. Its durability also ensures that it can withstand outdoor conditions, providing reliability even in challenging weather.

Benefits of 5V vs 12V Systems

Choosing between a 5V and a 12V system depends on your specific needs and setup. A 5V system, like the WS2812 pixels, offers brighter and more vibrant colors. This can be ideal for displays where color richness is a priority. However, it may require more frequent power injections to maintain consistent performance.

On the other hand, a 12V system, such as WS2811, is more forgiving over long distances. This can reduce the need for additional power management, making it a more straightforward option for large installations. The choice between these systems will largely depend on the scale and complexity of your project.

Power Injection and Voltage Drop Solutions

Handling power injection and voltage drop effectively is crucial for maintaining a consistent light display. Power injection can compensate for voltage drop, ensuring that all pixels receive the necessary power to function correctly. This is especially important for long runs or complex installations where voltage drop can lead to inconsistencies.

One strategy is to plan power injection points strategically along your setup. This minimizes the risk of voltage drop affecting the performance of your display. Additionally, using thicker gauge wires can help reduce resistance, further mitigating voltage drop issues.

Best Practices for Outdoor Light Shows

Outdoor light shows present unique challenges, but with proper planning, you can achieve stunning results. Let’s explore some best practices to ensure your display is both reliable and visually impressive.

Ensuring Reliability in Weather Conditions

Weather conditions can significantly impact the performance of your light show. To ensure reliability, it’s vital to choose components designed to withstand outdoor elements. Look for products with IP65 or IP67 ratings, which indicate strong resistance to water and dust.

Properly sealing connections is another crucial step. Waterproof connectors and heat-shrink tubing can protect against moisture intrusion, which can cause malfunctions. Regular maintenance checks will also help identify potential issues before they become major problems.

Tips for Halloween and Christmas Displays

Creating standout displays for Halloween and Christmas involves more than just hanging lights. Consider using a mix of bullet pixels and LED strips to add variety and depth to your design. This combination allows for dynamic effects and can help create a more immersive experience.

When planning your design, think about the story you want to tell. Use colors and sequences that align with your theme, whether it’s spooky for Halloween or festive for Christmas. This attention to detail can elevate your display and captivate your audience.

Using xLights with Bullet Pixels and LED Strips

xLights is a powerful tool for creating synchronized light shows. Its compatibility with both bullet pixels and LED strips makes it an excellent choice for DIY enthusiasts and professionals alike. By using xLights, you can customize sequences, transitions, and effects to suit your vision.

Start by mapping out your setup in xLights to get a clear picture of your design. This can help you visualize the placement of pixels and strips, ensuring a cohesive look. Experiment with different effects and timings to find what works best for your display.

In conclusion, understanding the nuances between WS2811 and WS2812 pixels, along with choosing the right controller and following best practices, can help you create a captivating outdoor light show. Whether you’re lighting up the night for Halloween or spreading holiday cheer at Christmas, the right setup will ensure your display shines brightly.
